Machining

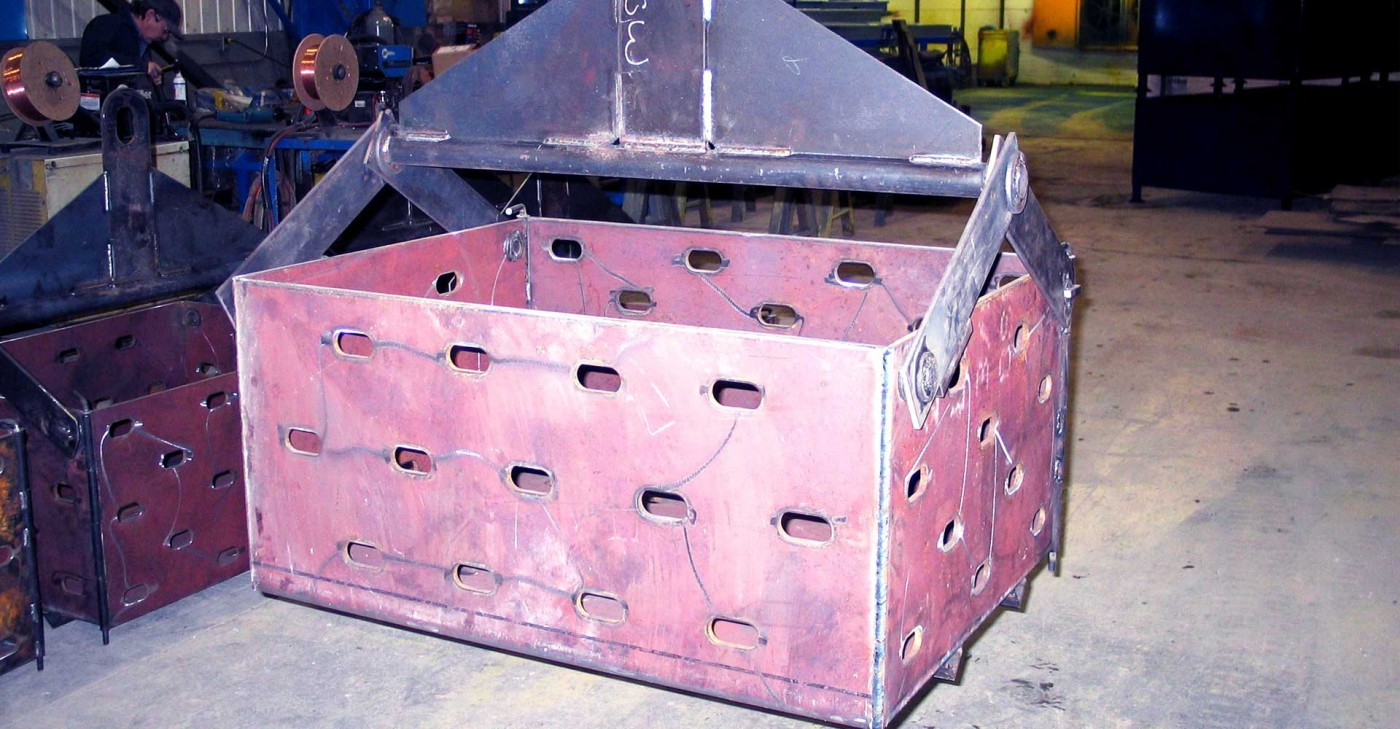

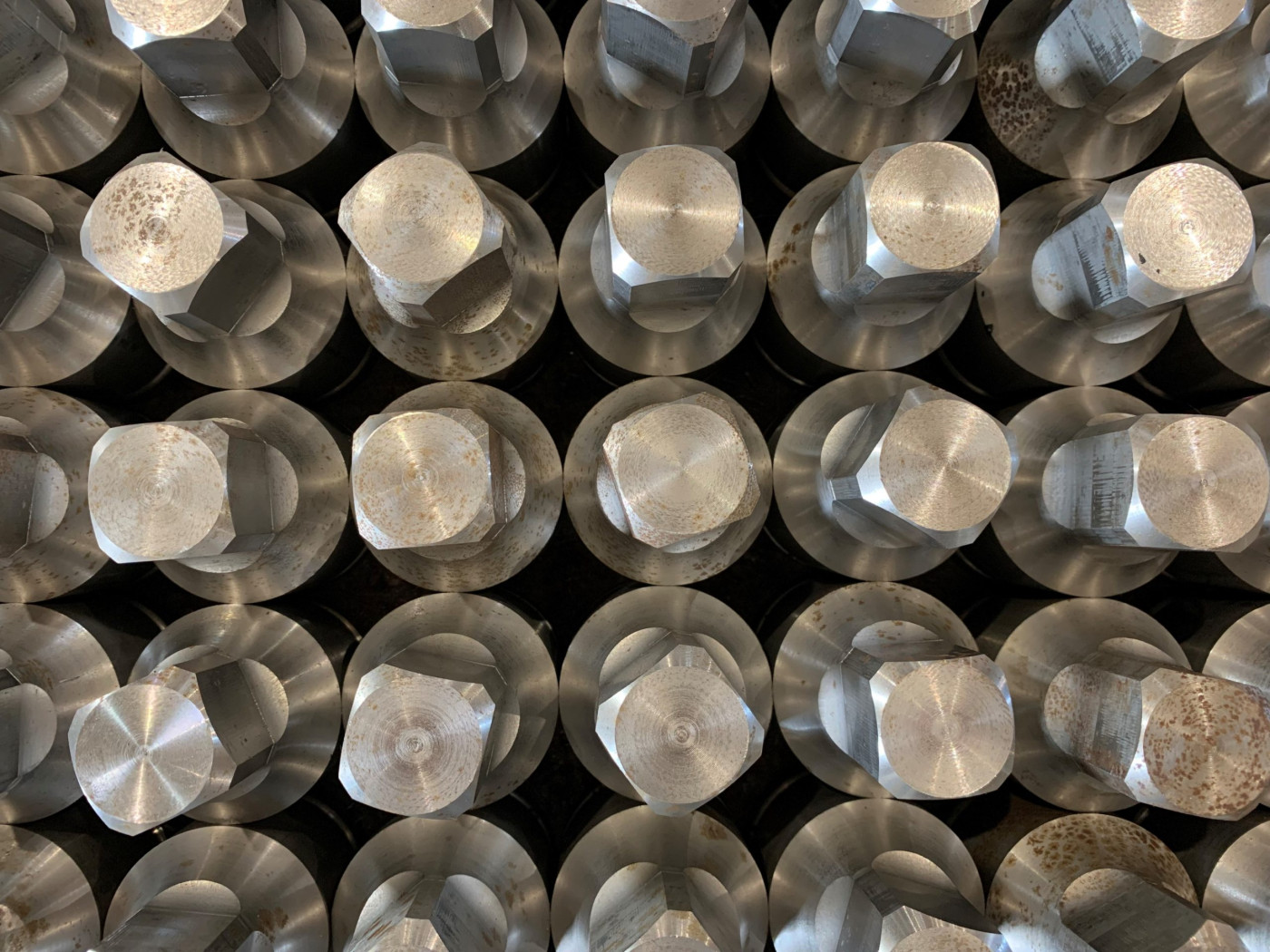

Channel Industrial Group boasts a versatile machine shop that can handle everything from intricate machined parts to large weldments. Channel has experience machining parts and fabrications for many industries including mining, automation, construction, and more.
Equipped with large CNC boring mills, multi-axis CNC & Manual milling machines, and both manual & CNC lathes, Channel has the equipment and the expertise to satisfy every project’s needs. Paired with our extensive processing and welding capabilities, we can offer complete one-stop-shop solutions!
Machines
Toshiba BP-150.R22 Horizontal
X-axis: 160″
Y-axis: 120″
Z-axis: 60″
B-axis: Rotary table equipped
Table Load Cap: 44,000lbs

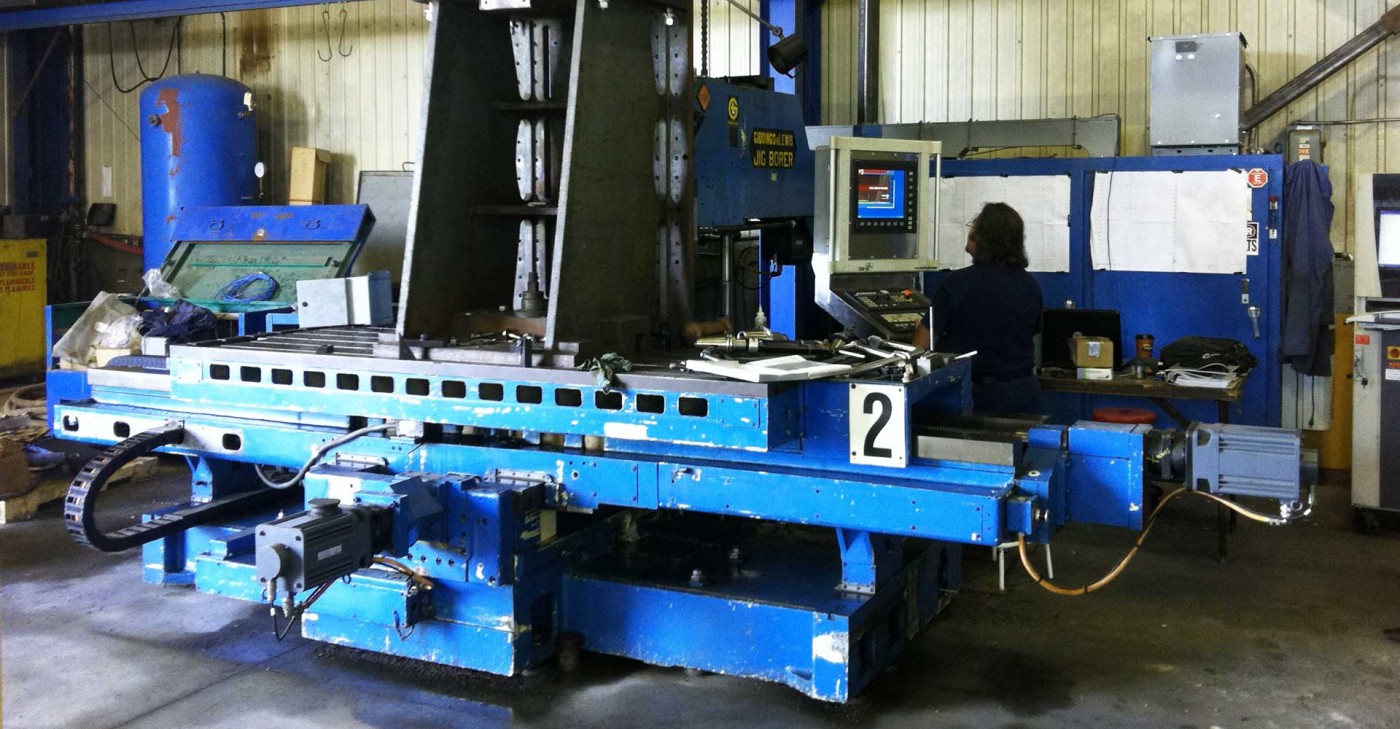

CNC Gidding & Lewis Jig Borer 4JE
X-axis: 90″
Y-axis: 85″
Z-axis: 60″
CNC Lucas
X-axis: 112″
Y-axis: 48″
Z-axis: 96″

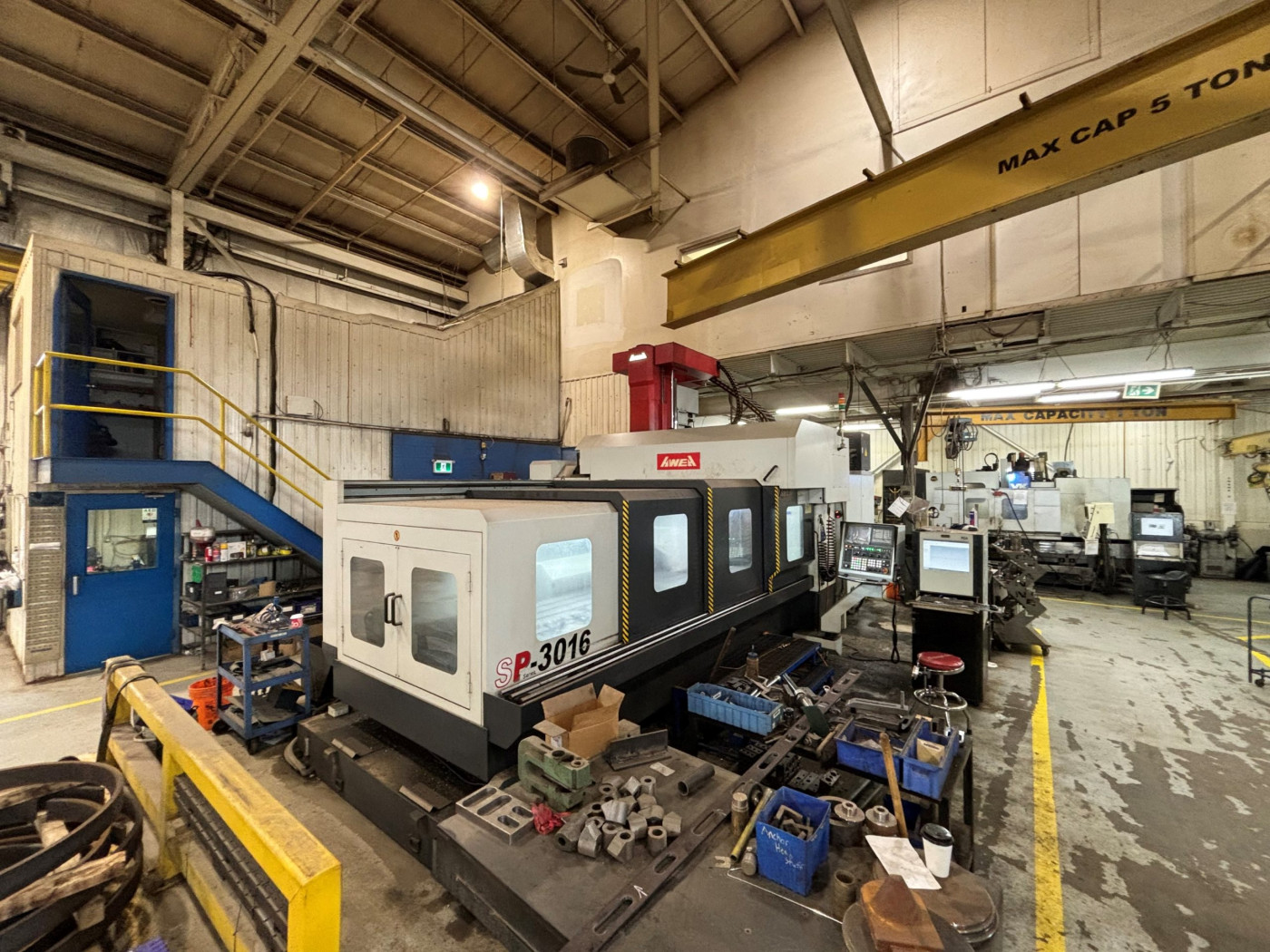

AWEA-SP3016
Bridge-Type
X-axis: 120″
Y-axis: 63″
Z-axis: 30″
B-axis: Rotary table equipped
SHW UNISPEED 6
Horizontal/Vertical
X-axis: 118″
Y-axis: 51″
Z-axis: 51″
B-axis: Rotary table equipped
Table Load Cap: 12,000lbs
ENSHU-800V
X-axis: 100″
Y-axis: 32″
Z-axis: 34″
HITATCHI VK65
20 Tool Turret
X-axis: 50″
Y-axis: 26″
Z-axis: 28″
Mazak Lathe
Bed Length: 84″
Spindle Bore: 4-5/8″
Spin: 16″ with saddle, 26″ at chuck
Turret #1: 8 tools
Turret #2: 6 tools
Hwacheon Lathe
Bed Length: 16″
Spindle Bore: 1-3/4″
Spin: 7″ at chuck
Turret: 7 tools
Doosan Lathe
Bed Length: 15″
Spindle Bore: 3″
Spindle Distance: 26″
Spin: 10″
Turrets: 12 tools (with live tooling)
Lillian Manual Mill
X-axis: 31″
Y-axis: 13″
Z-axis: 13″
Colchester 16″
Center Distance: 6ft 8″
Diameter: 16″
Diameter at Gap: 28″
Tos 18″
Center Distance: 6ft 8″
Diameter: 18″
Swing: 9-1/2″
HOWA 1000
Bed Size: 32″
Center Bore: Ø2″ MAX
Swing: 16″
Microweily
Bed Size: 34″
Center Bore: Ø3″ MAX
Swing: 22″
